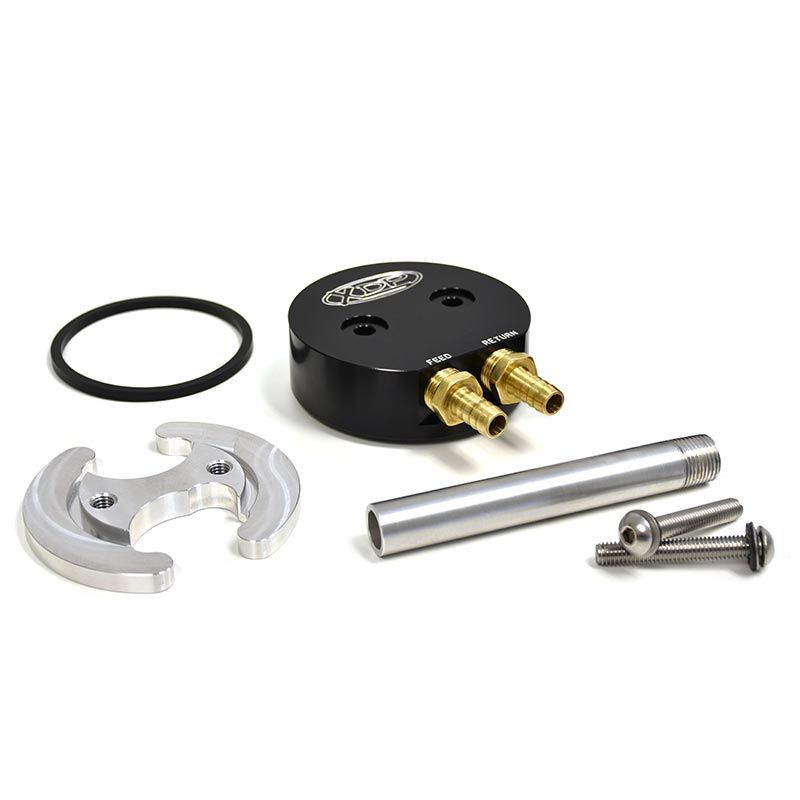

Fuel Tank Sump One Hole Design With Fuel Return XD243 XDP

The XDP Fuel Tank Sump with Built-In Fuel Return XD243 provides you with a perfect option for custom fuel delivery with an aftermarket fuel system. The XD243 features a one-hole design that only requires drilling a single 3 inch hole for installation.

A machined groove for the o-ring gasket ensures a leak-free seal, and the inner-ring is designed to fit into the bottom of the tank without requiring you to remove it from the truck.

What sets the XD243 apart from the other sumps in the XDP lineup is the built-in fuel return for an easy connection to most aftermarket fuel systems. Using the built-in return port, you can easily route return fuel back to the tank without having to modify other components of your fuel system for a clean and easy installation.

For optimal fuel quality, the XDP Sump features a stand pipe that places the returned fuel above the fuel feed. This design prevents the aerated return fuel from going directly into the feed. Includes barbed fittings for 1/2 inch hose.

Features:

• Built-In Fuel Return
• No Tank Drop Installation
• Stand Pipe Separates Return Fuel & Feed
• Made From Aircraft Grade T6 Billet Aluminum
